Choosing the
Right Hoist
The right hoist depends on your application, capacity, and usage.
- Electric Chain Hoists
Best for light to medium-duty lifting, compact spaces, and frequent use - Wire Rope Hoists
Designed for higher capacities, longer lifts, and more demanding industrial applications
Chain Hoist vs Wire Rope Hoist
| Feature | Electric Chain Hoist | Wire Rope Hoist |
|---|---|---|
| Capacity | Up to ~2 Ton typical | 5 Ton to 100 Ton+ |
| Best Use Case | Workstations, jib cranes, light-duty systems | Overhead cranes, gantry systems, heavy lifting |
| Lift Height | Short to moderate | Long lift heights |
| Precision | High control for repetitive lifting | Designed for heavy loads and stability |
| Size | Compact, lightweight | Larger, heavy-duty design |
| Duty Type | Frequent, lighter lifting | High-capacity, industrial duty |

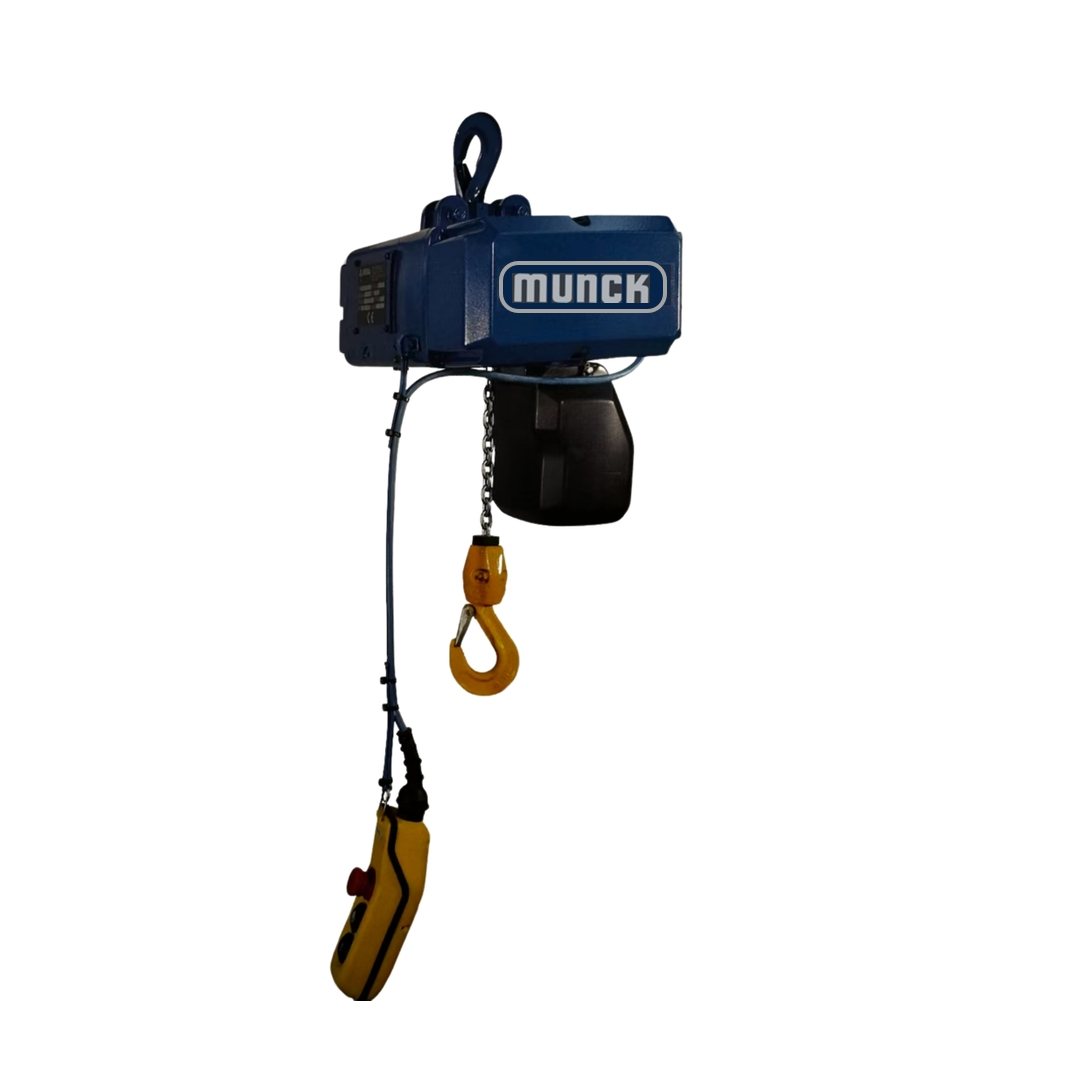

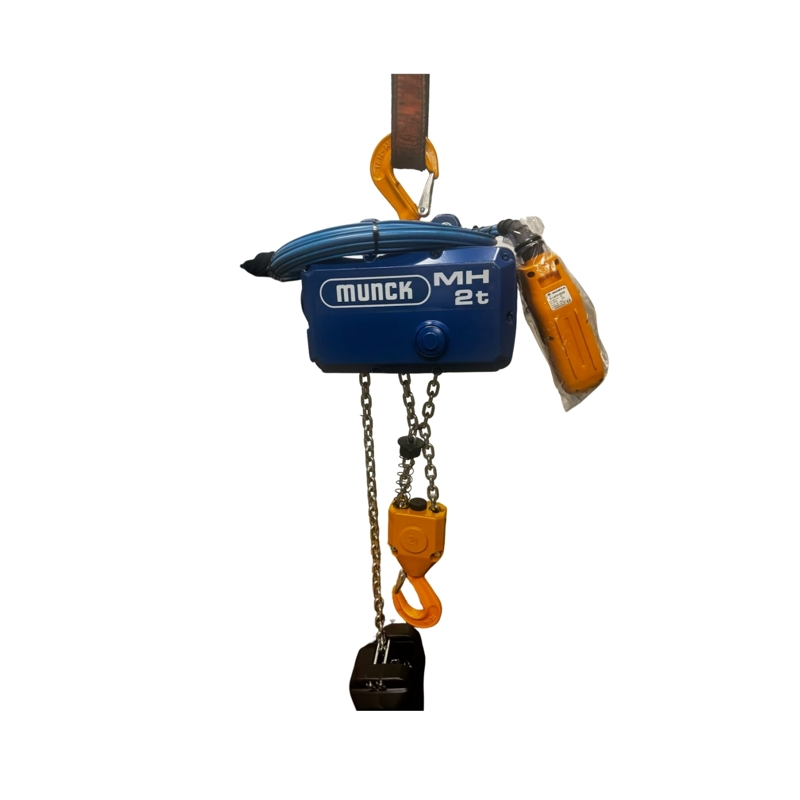

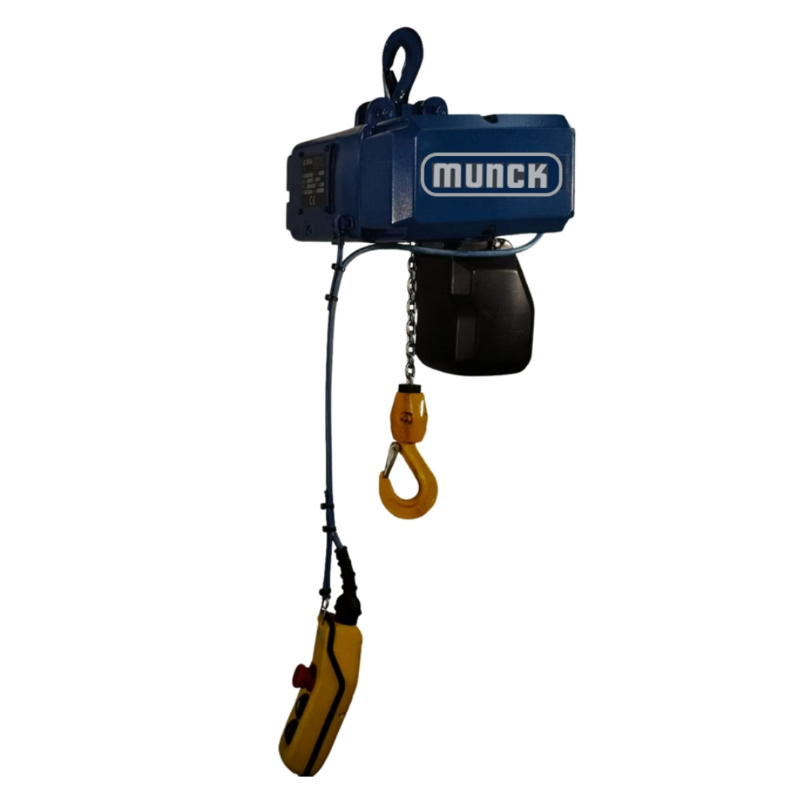

MH Series Electric Chain Hoists
The Munck MH Series is designed around a simple principle:
deliver dependable lifting in a compact, durable package.
Spec Snapshot
Here’s what you can expect from the MH Series:
- Capacity range: 125 kg to 2,000 kg
- Standard lift height: 3 m
- Power supply: 380–415V (50Hz) / 400–460V (60Hz)
- Control voltage: 24V
- Chain: Electro-galvanized G80
- Protection: IP55 (hoist), IP65 (pendant)
Flexible Mounting Options
Munck electric chain hoists are available in multiple configurations to match your setup:
- Hook suspension for simple, flexible installation
- Eye suspension for fixed mounting applications

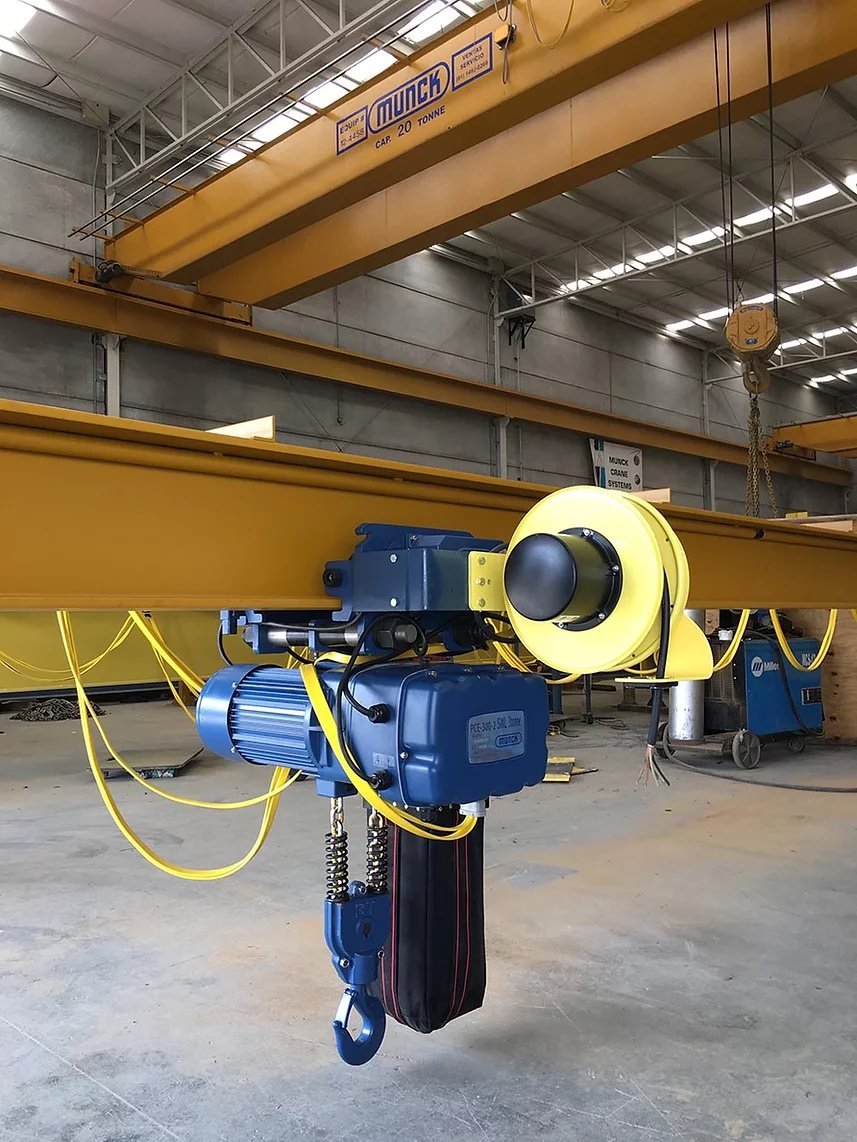

- Manual trolley for horizontal movement along beams
- Electric trolley for powered travel and increased efficiency
Each configuration is designed to integrate seamlessly into your lifting system while maintaining compact dimensions and ease of use.

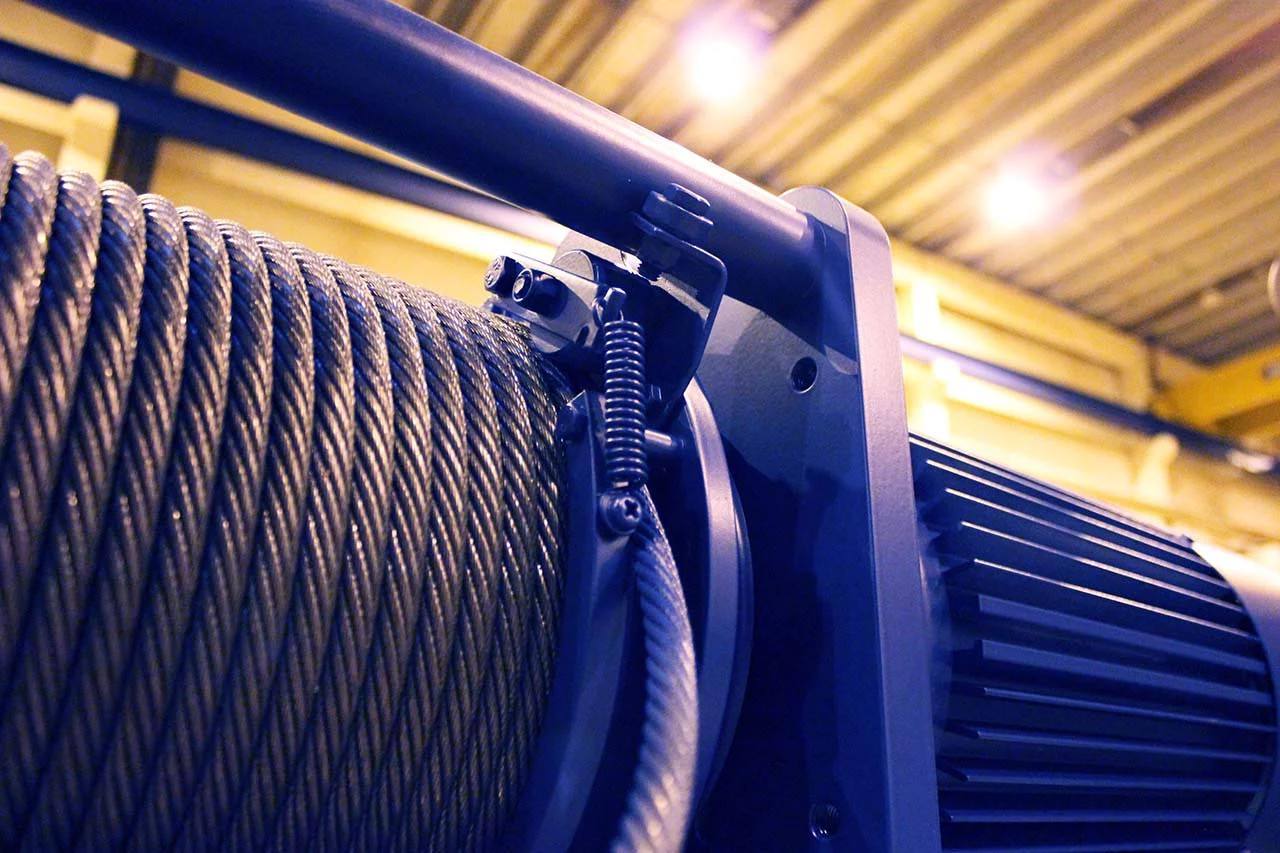

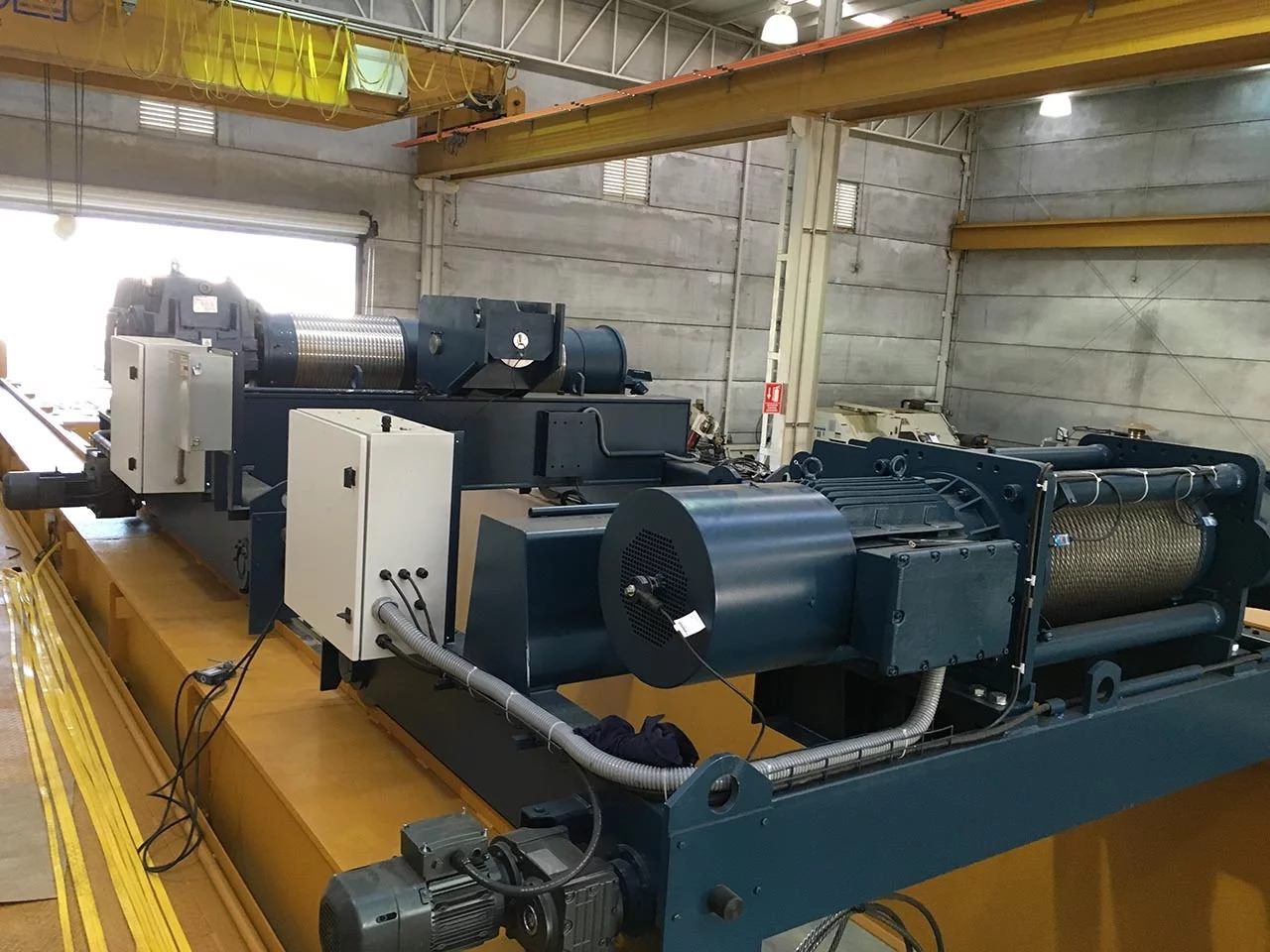

XM Series Wire Rope Hoists
The Munck wire rope hoist line is designed around a simple principle:
deliver high-capacity, precision lifting for demanding industrial applications.
Spec Snapshot
Here’s what you can expect from Munck XM Series wire rope hoists:
- Capacity range: 5 Ton to 100 Ton+
- Lift height: Custom engineered based on application
- Configuration: Single girder, double girder, foot-mounted
- Power supply: 3-phase industrial power
- Control voltage: 24V
- Reeving: Multiple drum and reeving configurations available
- Protection: Industrial-grade enclosure (application dependent)
Flexible Mounting Options
Munck wire rope hoists are available in multiple configurations to match your crane system:

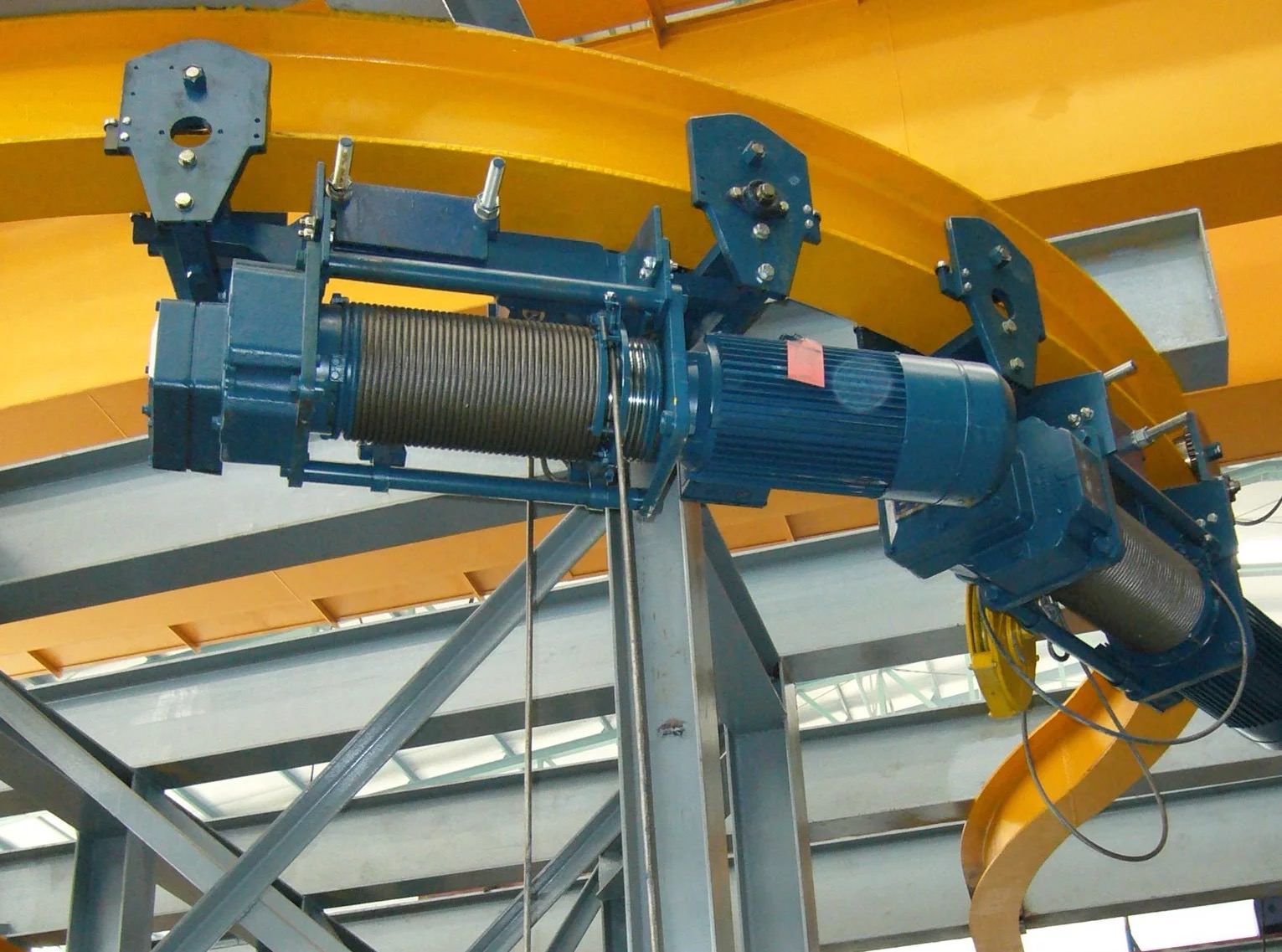

- Single girder trolley hoists for compact installations

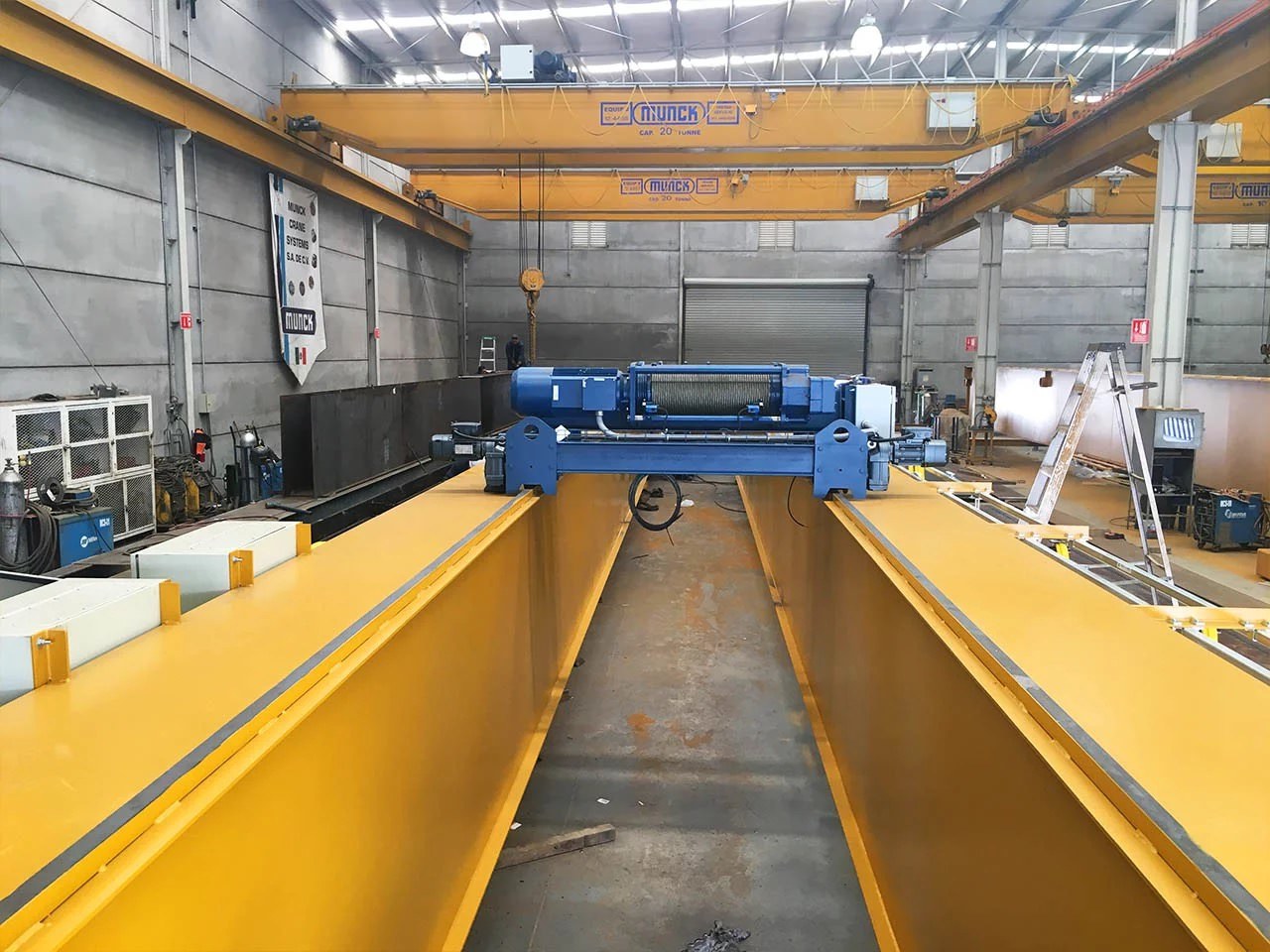

- Double girder trolley hoists for higher capacities and improved hook travel
- Foot-mounted hoists for custom applications and retrofits
- Dual hoist configurations for synchronized or high-lift applications
Each configuration is engineered to integrate seamlessly into your lifting system while delivering the performance and durability required for heavy-duty use.
